Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

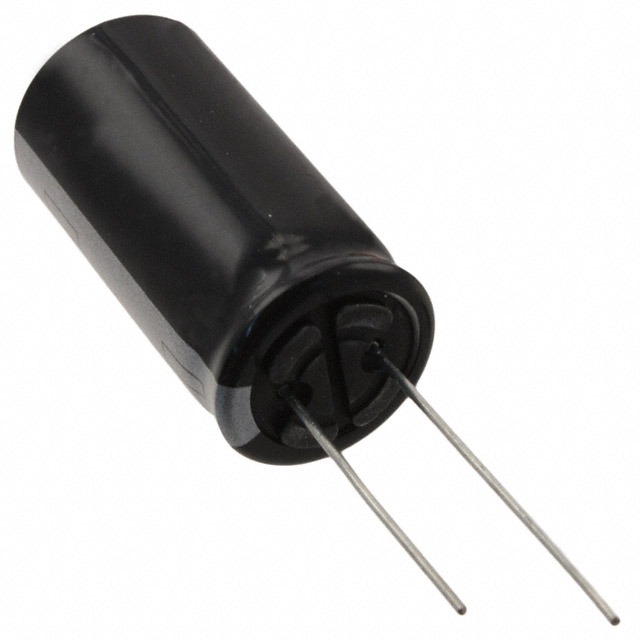

| Mfr | Panasonic Electronic Components |
| Series | NHG-A |
| Packaging | Bulk |
| Part Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage – Rated | 63 V |
| ESR (Equivalent Series Resistance) | – |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | – |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.61 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.852 A @ 100 kHz |
| Lead Spacing | 0.295″ (7.50mm) |
| Size / Dimension | 0.709″ Dia (18.00mm) |
| Height – Seated (Max) | 1.476″ (37.50mm) |
| Surface Mount Land Size | – |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | ECA-1JH |
