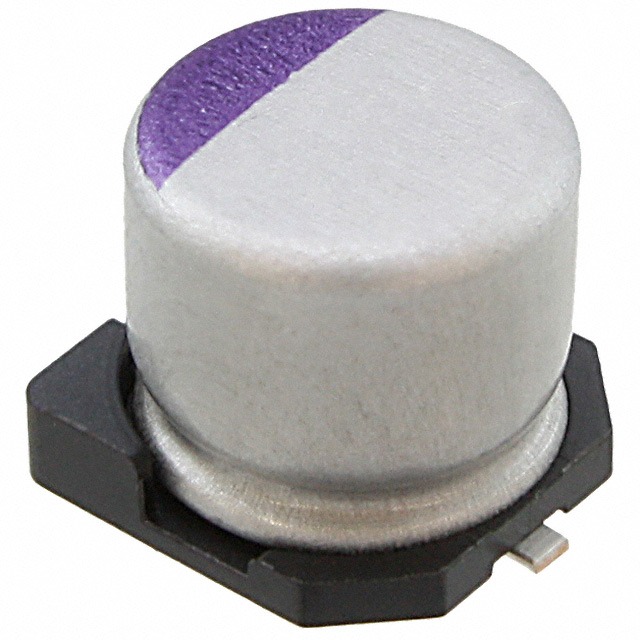

Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Panasonic Electronic Components |
| Series | OS-CON™, SVPF |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage – Rated | 25 V |
| ESR (Equivalent Series Resistance) | 24mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | – |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.2 A @ 100 kHz |
| Lead Spacing | – |
| Size / Dimension | 0.315″ Dia (8.00mm) |
| Height – Seated (Max) | 0.276″ (7.00mm) |
| Surface Mount Land Size | 0.327″ L x 0.327″ W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can – SMD |
| Base Product Number | 25SVPF |
