Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

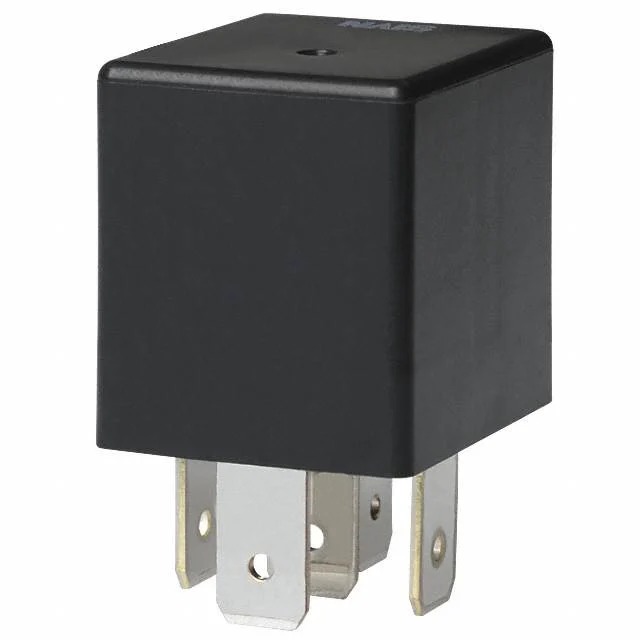

| Manufacturer | Panasonic Electric Works |
| Series | CB |
| Packaging | Bulk |
| Part Status | Active |
| Coil Type | Non Latching |
| Coil Current | 117 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 14VDC – Nom |
| Must Operate Voltage | 7 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Features | Sealed – Fully |
| Mounting Type | Socketable |
| Termination Style | Plug In, Quick Connect – 0.250″ (6.3mm) |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Coil Power | 1.4W |
| Coil Resistance | 103 Ohms |
| Base Product Number | CB1-12 |
