Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

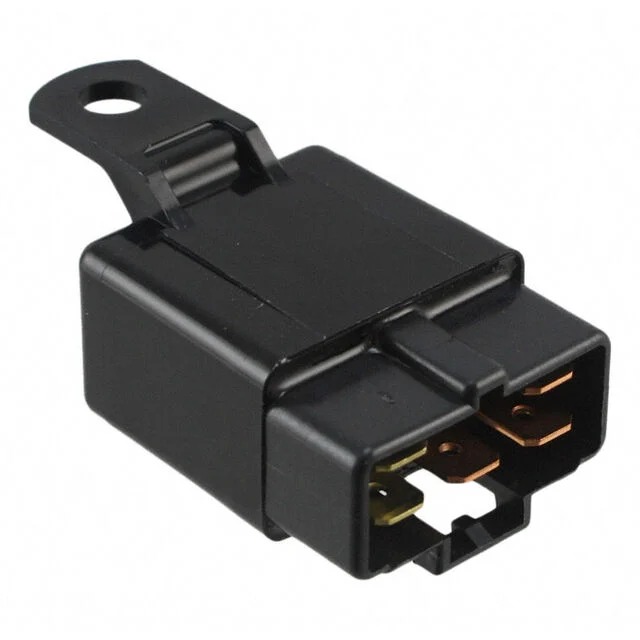

| Manufacturer | Panasonic Electric Works |
| Series | CA |
| Packaging | Bulk |
| Part Status | Active |
| Coil Type | Non Latching |
| Coil Current | 75 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 30VDC – Max |
| Must Operate Voltage | 16 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Features | – |
| Mounting Type | Chassis Mount |
| Termination Style | Plug In |
| Operating Temperature | -30°C ~ 80°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Coil Power | 1.8W |
| Coil Resistance | 320 Ohms |
| Base Product Number | CA1-DC |
