Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

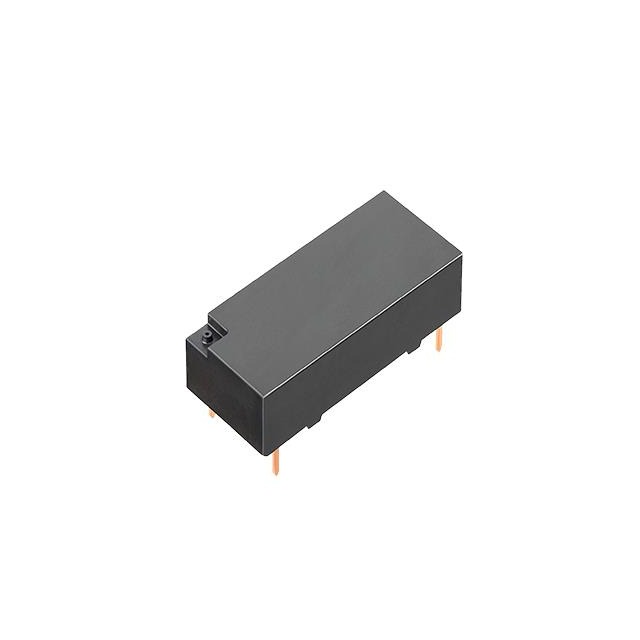

| Manufacturer | Panasonic Electric Works |
| Series | SF-M |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | DPST-NO/NC (1 Form A, 1 Form B) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 250VAC, 125VDC – Max |
| Features | Sealed – Fully |
| Termination Style | PC Pin |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Coil Current | 11 mA |
| Coil Power | 270mW |
| Coil Resistance | 2.133 kOhms |
| Base Product Number | ASFM0245 |
