Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

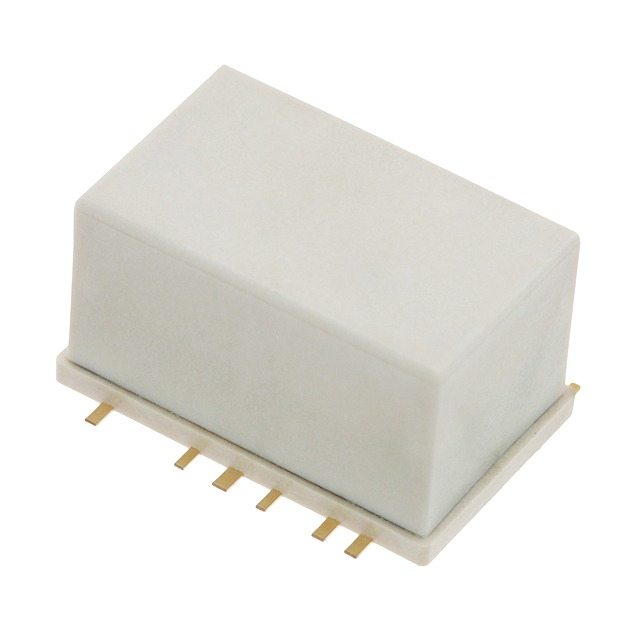

| Manufacturer | Panasonic Electric Works |
| Series | ARS |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Coil Type | Non Latching |
| Coil Current | 16.7 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 500 mA |
| Switching Voltage | 30VDC – Max |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Release Time | 6 ms |
| Features | – |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Gold Plating |
| Coil Power | 200mW |
| Coil Resistance | 720 Ohms |
| Base Product Number | ARS14Y |
