Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

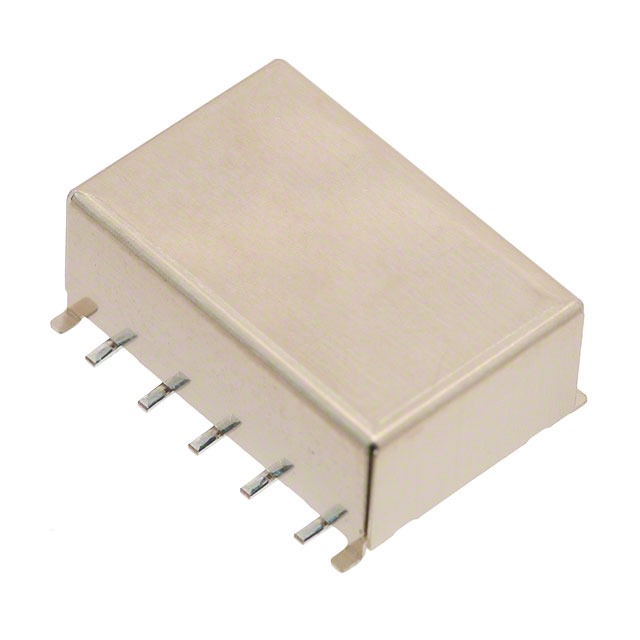

| Manufacturer | Panasonic Electric Works |
| Series | ARA |
| Packaging | Tube |
| Part Status | Active |
| Coil Type | Latching, Dual Coil |
| Coil Current | 28.1 mA |
| Coil Voltage | 5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 30VDC – Max |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | – |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Features | – |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Coil Power | 140mW |
| Coil Resistance | 178 Ohms |
| Base Product Number | ARA220 |
