Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | onsemi |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | – |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 280Ohm |
| Channel-to-Channel Matching (ΔRon) | 10Ohm |
| Voltage – Supply, Single (V+) | 3V ~ 18V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | – |
| -3db Bandwidth | 15MHz |
| Charge Injection | – |
| Channel Capacitance (CS(off), CD(off)) | 100pF |
| Current – Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | – |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

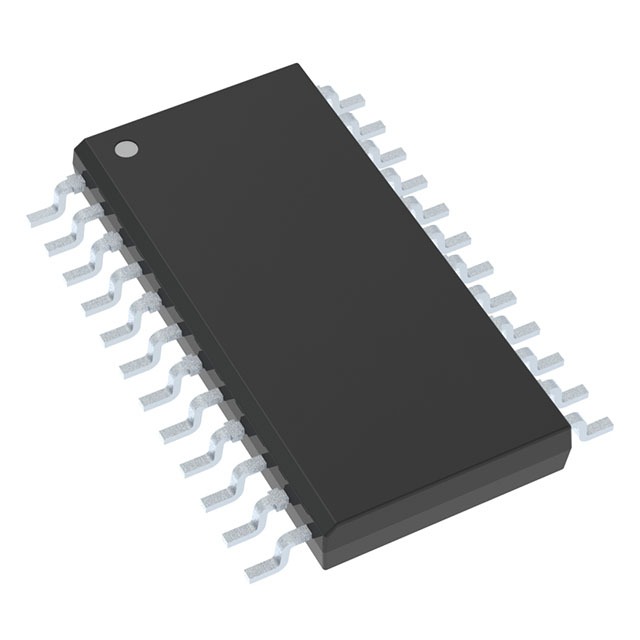

| Package / Case | 24-SOIC (0.295″, 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| Base Product Number | MC14067 |
