Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | onsemi |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SP3T |
| Multiplexer/Demultiplexer Circuit | 3:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 15Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage – Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 6.5ns, 3.7ns |
| -3db Bandwidth | 200MHz |
| Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 3.6pF |
| Current – Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -60dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

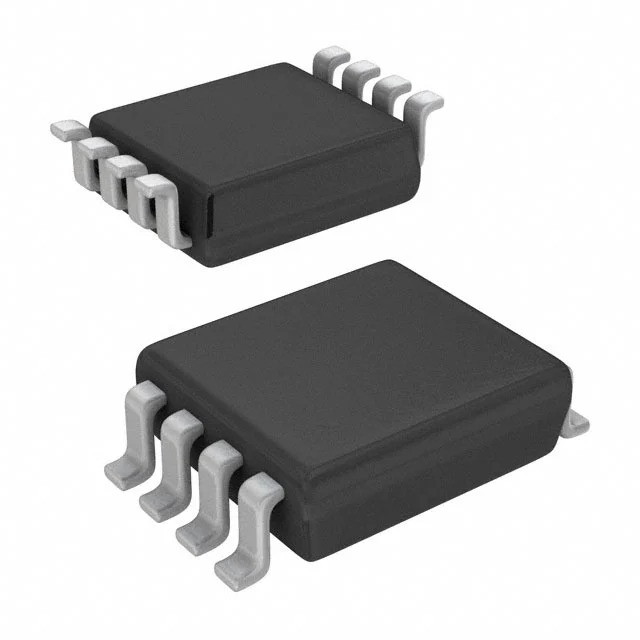

| Package / Case | 8-VFSOP (0.091″, 2.30mm Width) |
| Supplier Device Package | US8 |
| Base Product Number | FSA3357 |
