Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | onsemi |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1.6Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Voltage – Supply, Single (V+) | 1.65V ~ 4.45V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 50ns, 32ns |
| -3db Bandwidth | 240MHz |
| Charge Injection | 8pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF |
| Current – Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

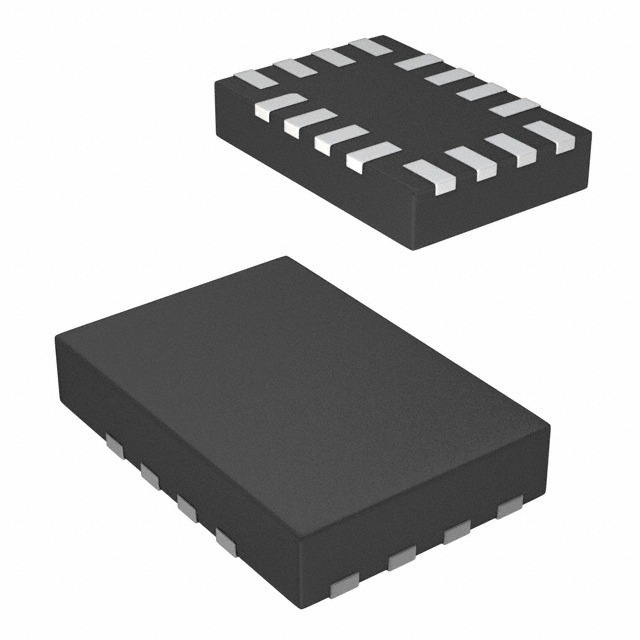

| Package / Case | 16-UFQFN |
| Supplier Device Package | 16-UMLP (1.8×2.6) |
| Base Product Number | FSA2466 |
