Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | onsemi |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 500mOhm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 80mOhm |
| Voltage – Supply, Single (V+) | 1.65V ~ 4.4V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 55ns, 30ns |
| -3db Bandwidth | 50MHz |
| Charge Injection | 25pC |
| Channel Capacitance (CS(off), CD(off)) | 30pF |
| Current – Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -100dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

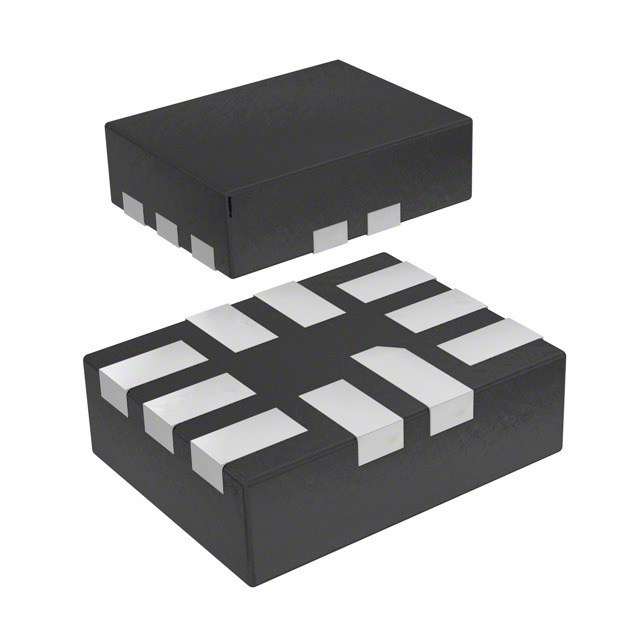

| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UMLP (1.8×1.4) |
| Base Product Number | FSA2259 |
