Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

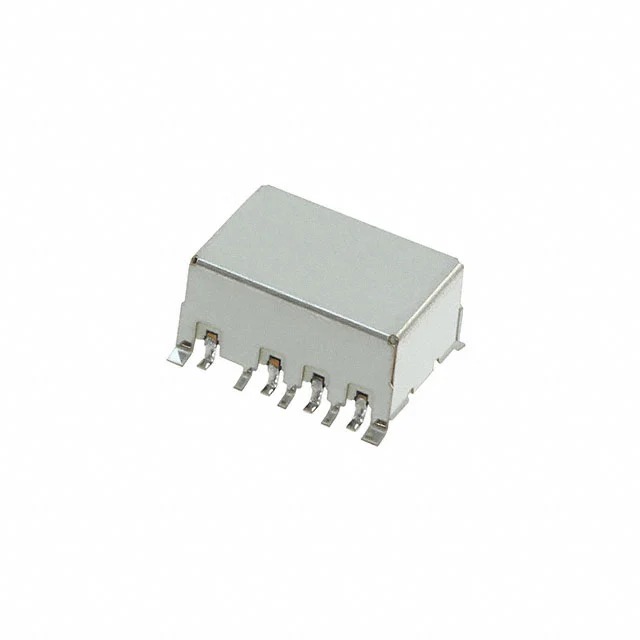

| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G6K-RF |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Coil Type | Non Latching |
| Coil Current | 21.1 mA |
| Coil Voltage | 5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 125VAC, 60VDC – Max |
| Must Operate Voltage | 4 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Features | – |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Coil Power | 100mW |
| Coil Resistance | 237 Ohms |
| Base Product Number | G6K |
