Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

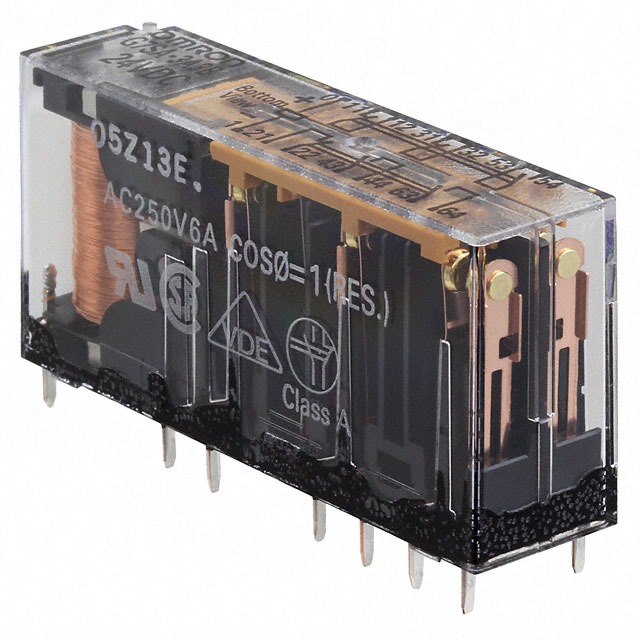

| Manufacturer | Omron Automation and Safety |
| Series | G7SA |
| Packaging | Bulk |
| Part Status | Obsolete |
| Mounting Type | Socketable, Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | 6PST-3NO/3NC (3 Form A, 3 Form B) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 250VAC, 125VDC – Max |
| Features | Sealed – Flux Protection |
| Termination Style | PC Pin, Plug In |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Coil Current | 20.8 mA |
| Coil Power | 500mW |
| Coil Resistance | 1.15 kOhms |
| Base Product Number | G7SA-3A |
