Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | NXP USA Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPST – NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 20mOhm |
| Voltage – Supply, Single (V+) | 1.4V ~ 4.3V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 28ns, 20ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | 6pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
| Current – Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

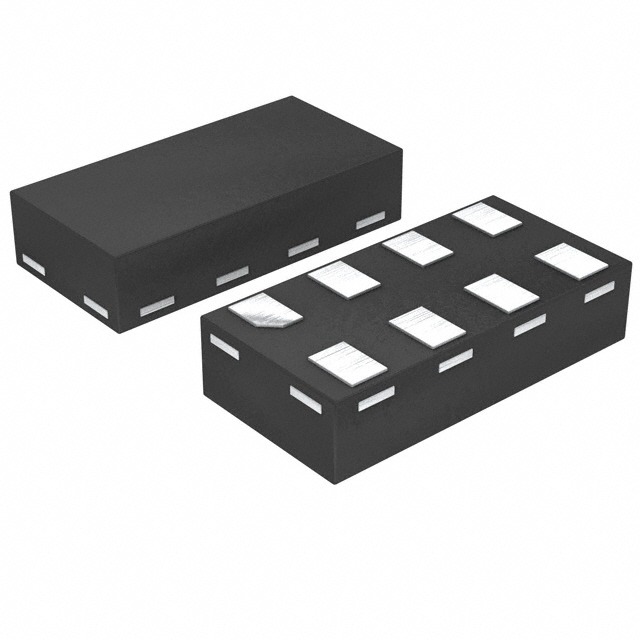

| Package / Case | 8-XFDFN |
| Supplier Device Package | 8-XSON, SOT833-1 (1.95×1) |
| Base Product Number | NX3L2T66 |
