Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | NXP USA Inc. |
| Series | RT1064 |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 600MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 127 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 1M x 8 |
| Voltage – Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 20x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Mounting Type | Surface Mount |

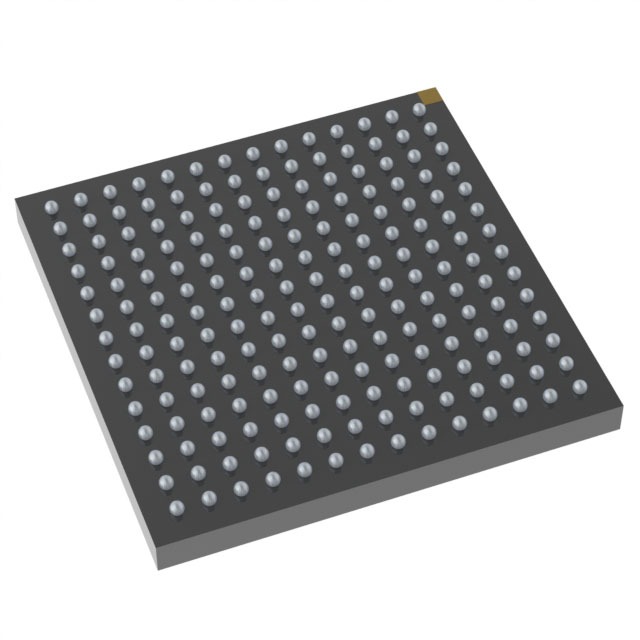

| Supplier Device Package | 196-MAPBGA (10×10) |
| Package / Case | 196-LFBGA |
| Base Product Number | MIMXRT1064 |
