Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | NXP USA Inc. |
| Series | i.MX8MN |
| Packaging | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-A53, ARM® Cortex®-M7 |
| Number of Cores/Bus Width | 2 Core, 64-Bit |
| Speed | 1.4GHz |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | DDR3L, DDR4, LPDDR4 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | LCD, MIPI-CSI |
| Ethernet | GbE |
| SATA | – |
| USB | USB 2.0 OTG + PHY (1) |
| Voltage – I/O | – |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Security Features | ARM TZ, CAAM, HAB, OCRAM, RDC, SJC, SNVS |
| Mounting Type | Surface Mount |

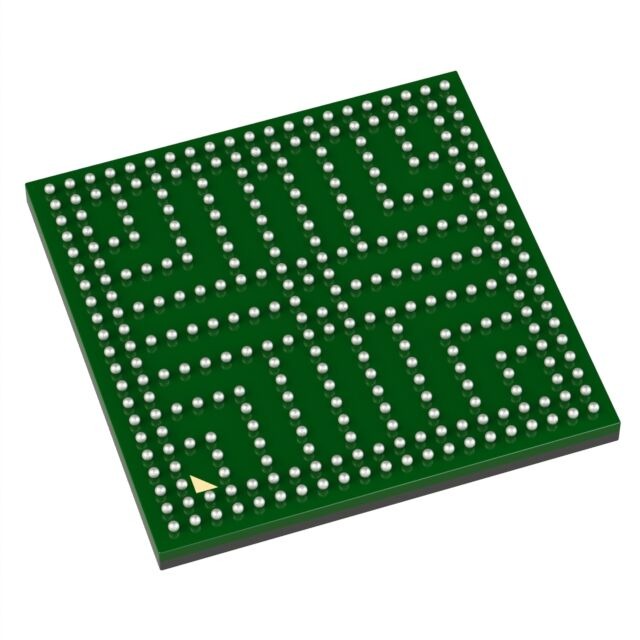

| Package / Case | 306-TFBGA |
| Supplier Device Package | 306-TFBGA (11×11) |
| Additional Interfaces | AC’97, I2C, I2S, MMC/SD, PCIe, PDM, SAI, SDHC, SPDIF, SPI, TDM, UART |
| Base Product Number | MIMX8MN1 |
