Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | NXP USA Inc. |
| Series | i.MX8ML |
| Packaging | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-A53 |
| Number of Cores/Bus Width | 2 Core, 64-Bit |
| Speed | 1.8GHz |
| Co-Processors/DSP | ARM® Cortex®-M7, Multimedia; NEON™ MPE, Hi-Fi4 DSP |
| RAM Controllers | DDR4, LPDDR4 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | HTML, LVDS, MIPI-CSI, MIPI-DSI |
| Ethernet | GbE (2) |
| SATA | – |
| USB | USB 2.0 + PHY (2), USB 3.0 + PHY (2) |
| Voltage – I/O | – |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Security Features | ARM TZ, CAAM, RDC |
| Mounting Type | Surface Mount |

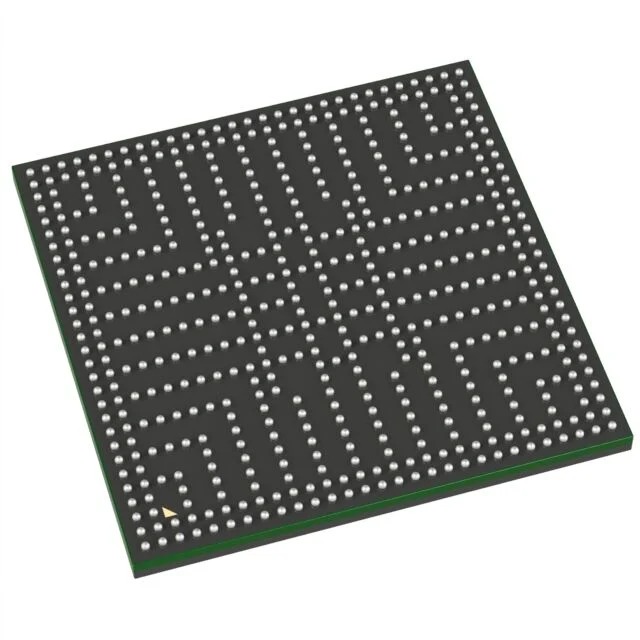

| Package / Case | 548-LFBGA |
| Supplier Device Package | 548-LFBGA (15×15) |
| Additional Interfaces | CAN, I2C, I2S, PCIe, SD/SDIO, SPI, UART |
