Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | NXP USA Inc. |
| Series | i.MX6UL |
| Packaging | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-A7 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 528MHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD, LVDS |
| Ethernet | 10/100Mbps (2) |
| SATA | – |
| USB | USB 2.0 + PHY (2) |
| Voltage – I/O | 1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Security Features | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS |
| Mounting Type | Surface Mount |

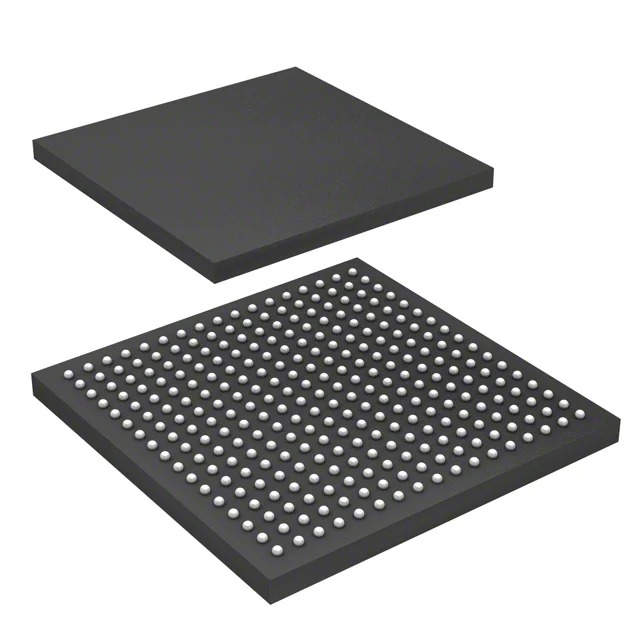

| Package / Case | 289-LFBGA |
| Supplier Device Package | 289-MAPBGA (14×14) |
| Additional Interfaces | CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, QSPI, SAI, SPI, SSI, S/PDIF, UART |
| Base Product Number | MCIMX6 |
