ÖZELLİK	AÇIKLAMA
Manufacturer	NXP USA Inc.
Series	i.MX6UL
Packaging	Tray
Part Status	Active
Core Processor	ARM® Cortex®-A7
Number of Cores/Bus Width	1 Core, 32-Bit
Speed	528MHz
Co-Processors/DSP	Multimedia; NEON™ SIMD
RAM Controllers	LPDDR2, DDR3, DDR3L
Graphics Acceleration	No
Display & Interface Controllers	LCD, LVDS
Ethernet	10/100Mbps (2)
SATA	–
USB	USB 2.0 + PHY (2)
Voltage – I/O	1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V
Operating Temperature	-40°C ~ 105°C (TJ)
Security Features	ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS
Mounting Type	Surface Mount

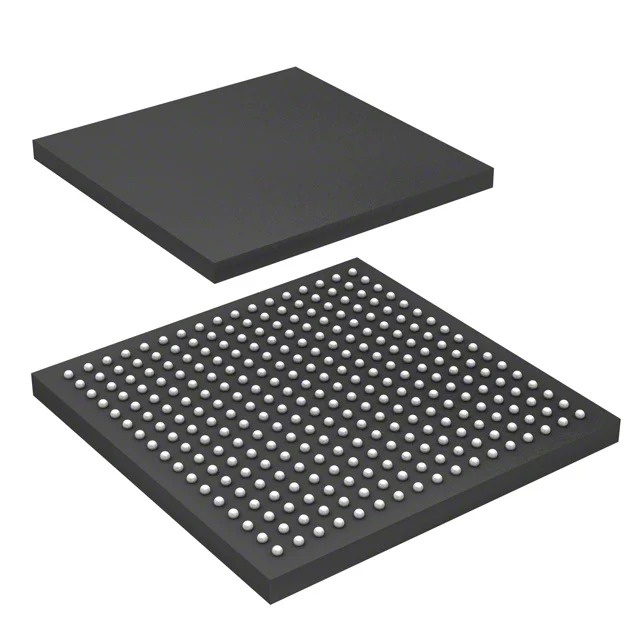

Package / Case	289-LFBGA
Supplier Device Package	289-MAPBGA (14×14)
Additional Interfaces	CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, QSPI, SAI, SPI, SSI, S/PDIF, UART
Base Product Number	MCIMX6
