Açıklama

ÖZELLİK	AÇIKLAMA
Manufacturer	NXP USA Inc.
Series	QorlQ LX2
Packaging	Tray
Part Status	Active
Core Processor	ARM® Cortex®-A72
Number of Cores/Bus Width	16 Core, 64-Bit
Speed	2.2GHz
Co-Processors/DSP	–
RAM Controllers	DDR4
Graphics Acceleration	Yes
Display & Interface Controllers	–
Ethernet	100Gbps (2)
SATA	SATA 3.0 (4)
USB	USB 3.0 (2) + PHY (2)
Voltage – I/O	1.2V, 1.8V, 3.3V
Operating Temperature	-40°C ~ 105°C (TJ)
Security Features	Secure Boot, TrustZone®
Mounting Type	Surface Mount

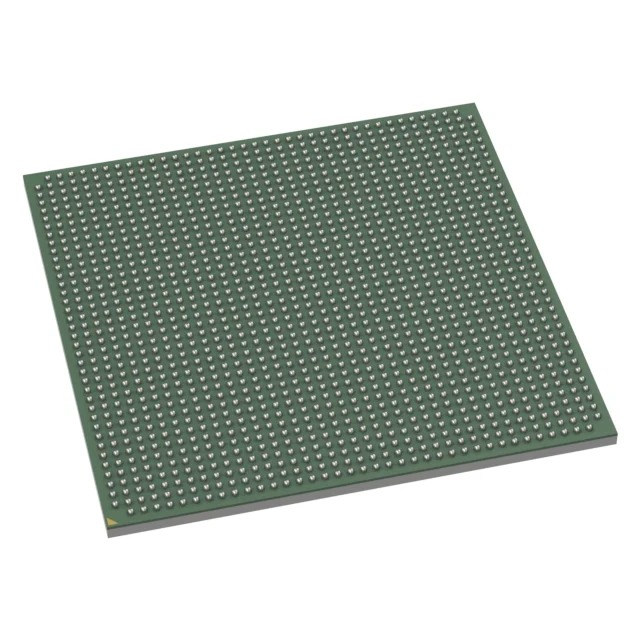

Package / Case	1517-BBGA, FCBGA
Supplier Device Package	1517-FCPBGA (40×40)
Additional Interfaces	CANbus, I2C, MMC/SD, SPI, UART
Base Product Number	LX2160
