Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | NXP USA Inc. |
| Series | LPC17xx |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit |
| Speed | 100MHz |
| Connectivity | CANbus, Ethernet, I2C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 52 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 64K x 8 |
| Voltage – Supply (Vcc/Vdd) | 2.4V ~ 3.6V |
| Data Converters | A/D 6x12b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

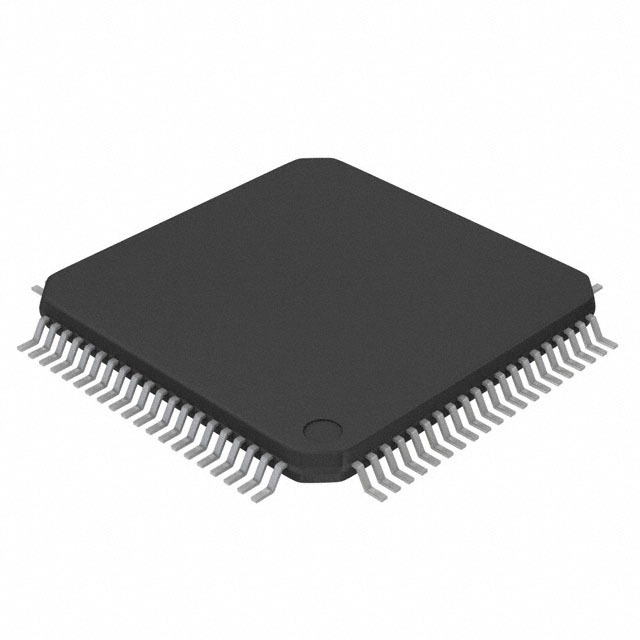

| Supplier Device Package | 80-LQFP (12×12) |
| Package / Case | 80-LQFP |
| Base Product Number | LPC1758 |
