Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | NXP USA Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Applications | DisplayPort, PCIe, USB |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Switch Circuit | – |
| Number of Channels | 2 |
| On-State Resistance (Max) | 6Ohm (Typ) |
| Voltage – Supply, Single (V+) | 3V ~ 3.6V |
| Voltage – Supply, Dual (V±) | – |
| -3db Bandwidth | 10GHz |
| Features | Bi-Directional, SATA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

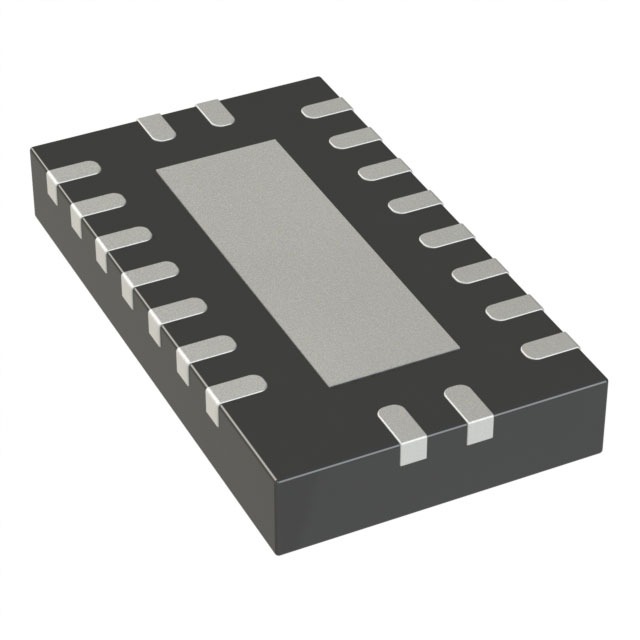

| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-DHVQFN (4.5×2.5) |
| Base Product Number | CBTL02043 |
