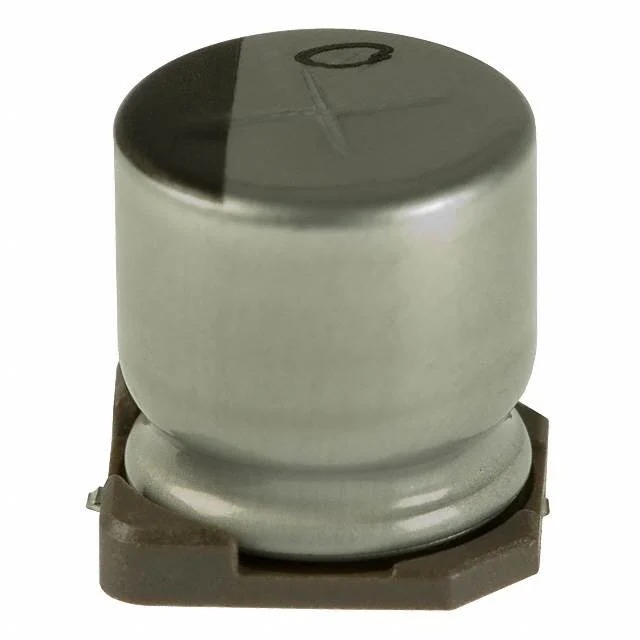

Açıklama

ÖZELLİK	AÇIKLAMA
Mfr	Nichicon
Series	UWT
Packaging	Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Part Status	Active
Capacitance	330 µF
Tolerance	±20%
Voltage – Rated	35 V
ESR (Equivalent Series Resistance)	–
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	General Purpose
Ripple Current @ Low Frequency	300 mA @ 120 Hz
Ripple Current @ High Frequency	450 mA @ 10 kHz
Lead Spacing	–
Size / Dimension	0.394″ Dia (10.00mm)
Height – Seated (Max)	0.394″ (10.00mm)
Surface Mount Land Size	0.406″ L x 0.406″ W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can – SMD
