Açıklama

ÖZELLİK	AÇIKLAMA

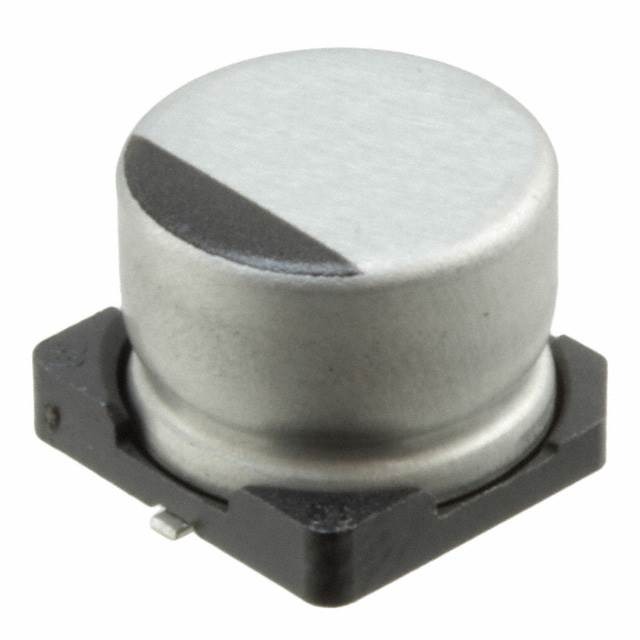

Mfr	Nichicon
Series	UUX
Packaging	Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Part Status	Active
Capacitance	4.7 µF
Tolerance	±20%
Voltage – Rated	100 V
ESR (Equivalent Series Resistance)	–
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	General Purpose
Ripple Current @ Low Frequency	42 mA @ 120 Hz
Ripple Current @ High Frequency	70.14 mA @ 10 kHz
Lead Spacing	–
Size / Dimension	0.315″ Dia (8.00mm)
Height – Seated (Max)	0.256″ (6.50mm)
Surface Mount Land Size	0.327″ L x 0.327″ W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can – SMD
