Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

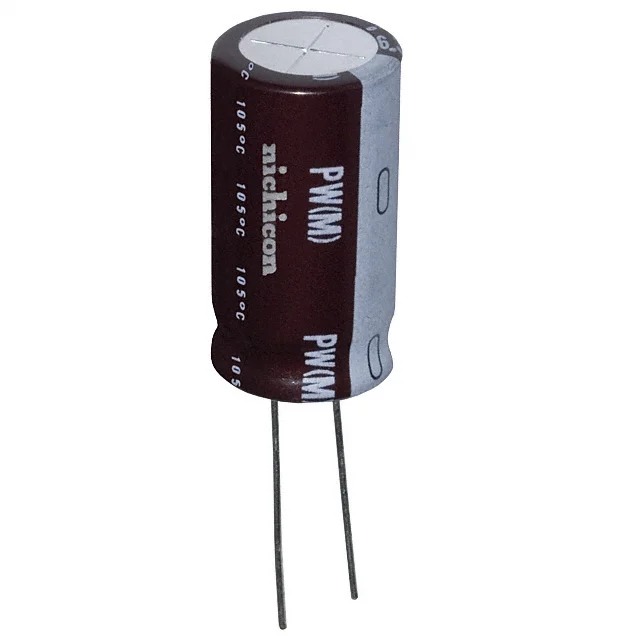

| Mfr | Nichicon |
| Series | UPW |
| Packaging | Bulk |
| Part Status | Not For New Designs |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage – Rated | 63 V |
| ESR (Equivalent Series Resistance) | – |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.078 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.77 A @ 100 kHz |
| Impedance | 43 mOhms |
| Lead Spacing | 0.295″ (7.50mm) |
| Size / Dimension | 0.630″ Dia (16.00mm) |
| Height – Seated (Max) | 1.240″ (31.50mm) |
| Surface Mount Land Size | – |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
