Açıklama

ÖZELLİK	AÇIKLAMA

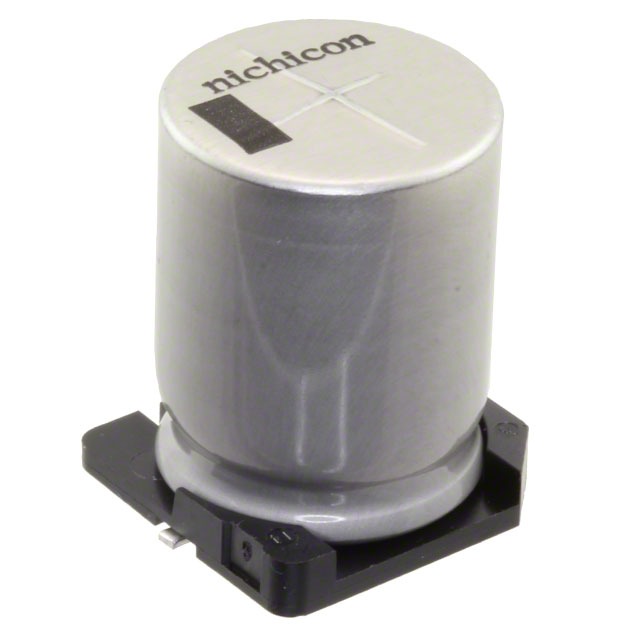

Mfr	Nichicon
Series	UCZ
Packaging	Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Part Status	Not For New Designs
Capacitance	220 µF
Tolerance	±20%
Voltage – Rated	100 V
ESR (Equivalent Series Resistance)	120mOhm @ 100kHz
Lifetime @ Temp.	4000 Hrs @ 125°C
Operating Temperature	-40°C ~ 125°C
Polarization	Polar
Ratings	–
Applications	General Purpose
Ripple Current @ Low Frequency	800 mA @ 120 Hz
Ripple Current @ High Frequency	1.6 A @ 100 kHz
Lead Spacing	–
Size / Dimension	0.630″ Dia (16.00mm)
Height – Seated (Max)	0.886″ (22.50mm)
Surface Mount Land Size	0.673″ L x 0.673″ W (17.10mm x 17.10mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can – SMD
