Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

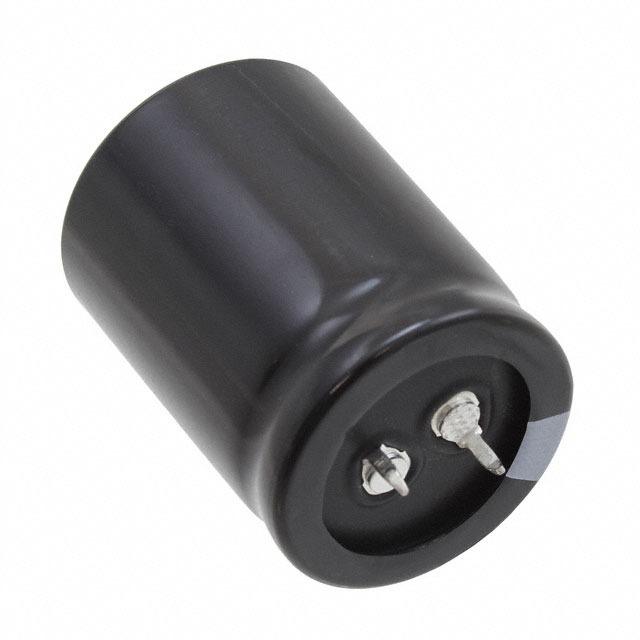

| Mfr | Nichicon |
| Series | LGU |
| Packaging | Tray |
| Part Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage – Rated | 400 V |
| ESR (Equivalent Series Resistance) | – |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | – |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.44 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.0592 A @ 50 kHz |
| Lead Spacing | 0.394″ (10.00mm) |
| Size / Dimension | 1.181″ Dia (30.00mm) |
| Height – Seated (Max) | 1.575″ (40.00mm) |
| Surface Mount Land Size | – |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can – Snap-In |
