Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | – |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 120Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm |
| Voltage – Supply, Single (V+) | 4.5V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 65ns, 60ns |
| -3db Bandwidth | 100MHz |
| Charge Injection | – |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current – Leakage (IS(off)) (Max) | 800nA |
| Crosstalk | – |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |

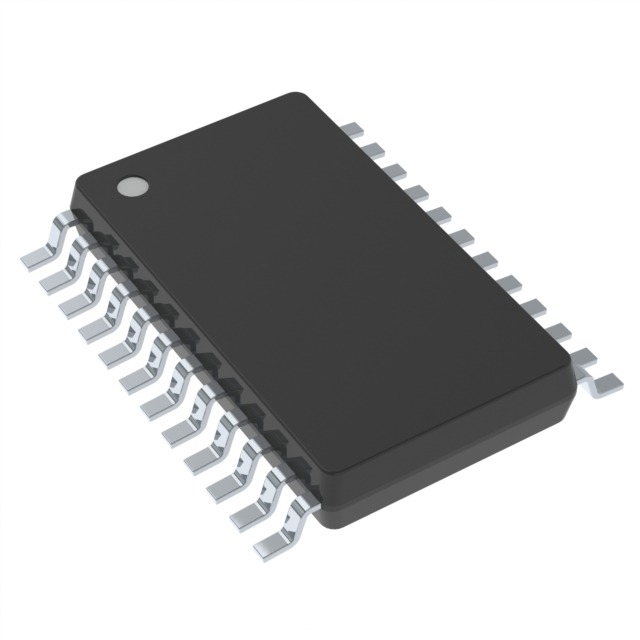

| Base Product Number | 74HCT4067 |
