Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Nexperia USA Inc. |
| Series | 74HC |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage – Supply | 2V ~ 6V |
| Current – Quiescent (Max) | 2 µA |
| Current – Output High, Low | 5.2mA, 5.2mA |
| Input Logic Level – Low | 0.3V ~ 1.2V |
| Input Logic Level – High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

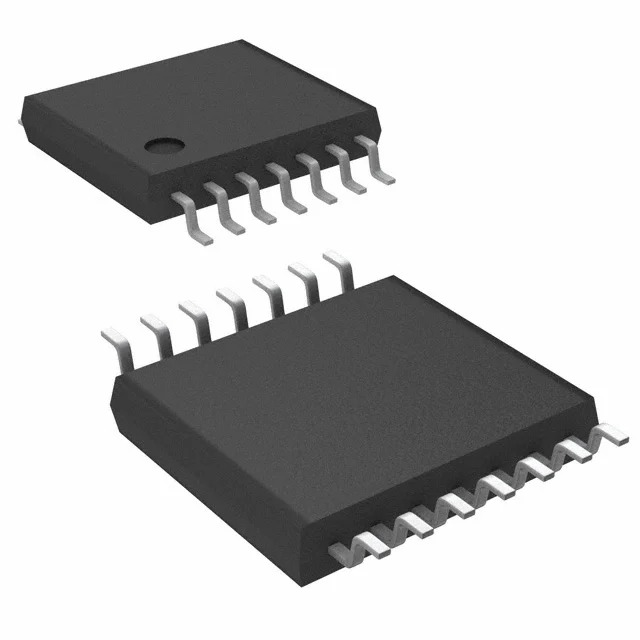

| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173″, 4.40mm Width) |
| Base Product Number | 74HC14 |
