Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Series | 74ALVC |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 425 MHz |
| Max Propagation Delay @ V, Max CL | 3.8ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge |
| Current – Output High, Low | 24mA, 24mA |
| Voltage – Supply | 1.65V ~ 3.6V |
| Current – Quiescent (Iq) | 10 µA |
| Input Capacitance | 3.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

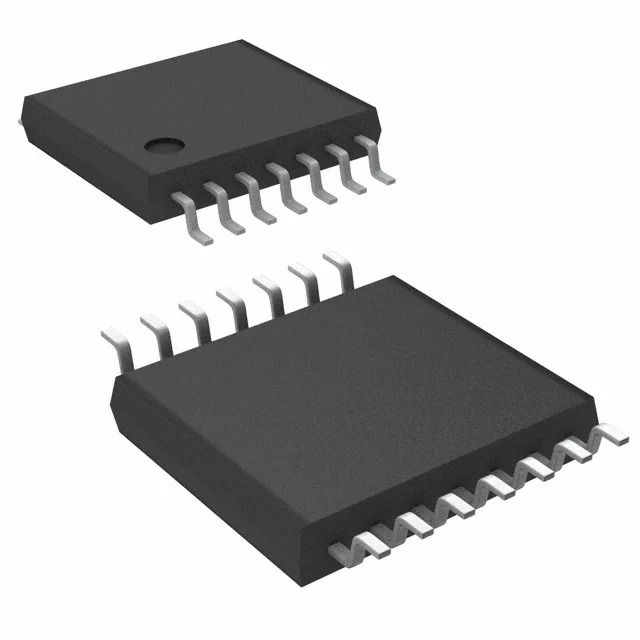

| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173″, 4.40mm Width) |
| Base Product Number | 74ALVC74 |
