Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | NDK (NIHON DEMPA KOGYO CO., LTD) |

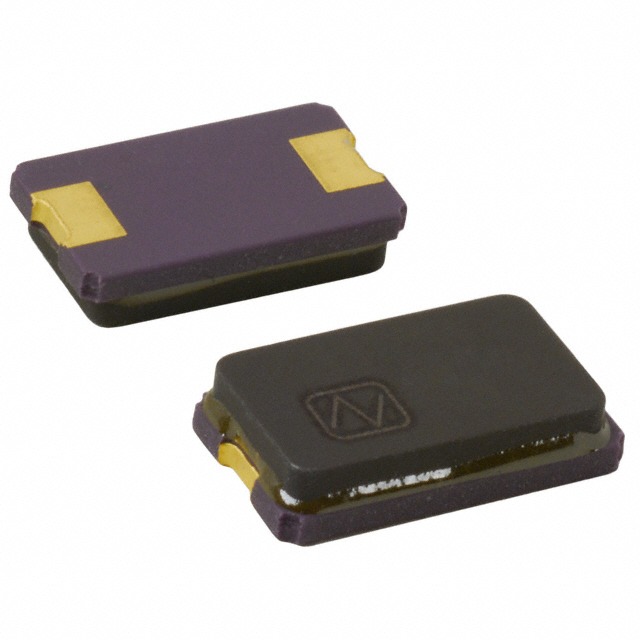

| Series | NX8045GB |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Type | MHz Crystal |
| Frequency | 16 MHz |
| Frequency Stability | – |
| Frequency Tolerance | ±50ppm |
| Load Capacitance | 8pF |
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 150°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 0.315″ L x 0.177″ W (8.00mm x 4.50mm) |
| Height – Seated (Max) | 0.079″ (2.00mm) |
