Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

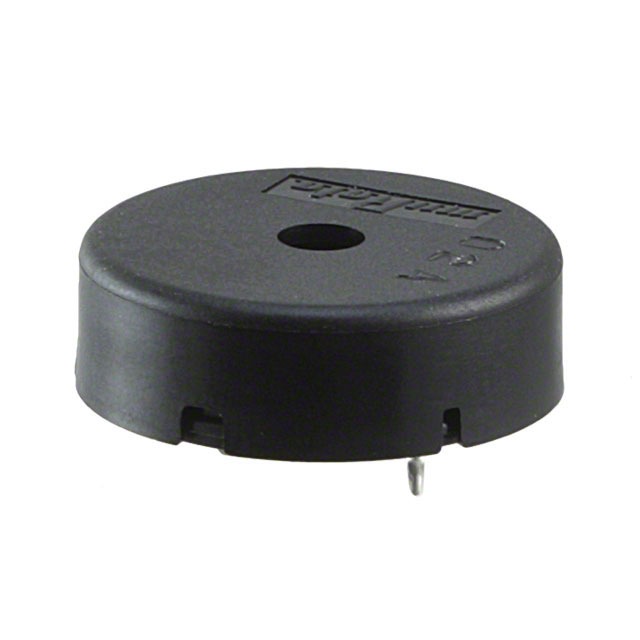

| Manufacturer | Murata Electronics |
| Series | PK |
| Packaging | Bulk |
| Part Status | Last Time Buy |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage – Rated | 1.5 V |
| Voltage Range | 30V (Max) |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | – |
| Sound Pressure Level (SPL) | 75dB @ 1.5V, 10cm |
| Current – Supply | – |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | – |
| Ratings | – |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.866″ Dia (22.00mm) |
| Height – Seated (Max) | 0.343″ (8.70mm) |
| Base Product Number | PKM22EPP |
