Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

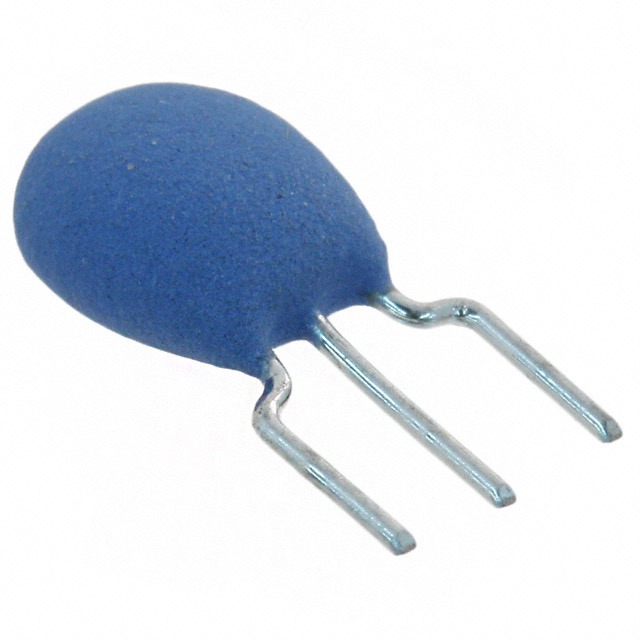

| Manufacturer | Murata Electronics |
| Series | CERALOCK® CSTLS |
| Packaging | Cut Tape (CT), Tape & Box (TB) |
| Part Status | Not For New Designs |
| Type | Ceramic |
| Frequency | 16 MHz |
| Frequency Stability | ±0.2% |
| Frequency Tolerance | ±0.5% |
| Features | Built in Capacitor |
| Capacitance | 30 pF |
| Impedance | 50 Ohms |
| Operating Temperature | -20°C ~ 80°C |
| Mounting Type | Through Hole |
| Package / Case | Radial – 3 Lead, 2.50mm Pitch |
| Size / Dimension | 0.217″ L x 0.118″ W (5.50mm x 3.00mm) |
| Height | 0.256″ (6.50mm) |
| Base Product Number | CSTLS |
