| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Microchip Technology |
| Series | – |
| Packaging | Tray |
| Part Status | Active |
| Core Processor | ARM® Cortex®-A7 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 1GHz |
| Co-Processors/DSP | – |
| RAM Controllers | DDR3L |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | LCD, LVDS, MIPI-DSI, RGB |
| Ethernet | 10/100/1000Mbps (2) |
| SATA | – |
| USB | USB (3) |
| Voltage – I/O | – |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Grade | – |
| Qualification | – |
| Security Features | AES, SHA, TDES, TRNG |
| Mounting Type | Surface Mount |

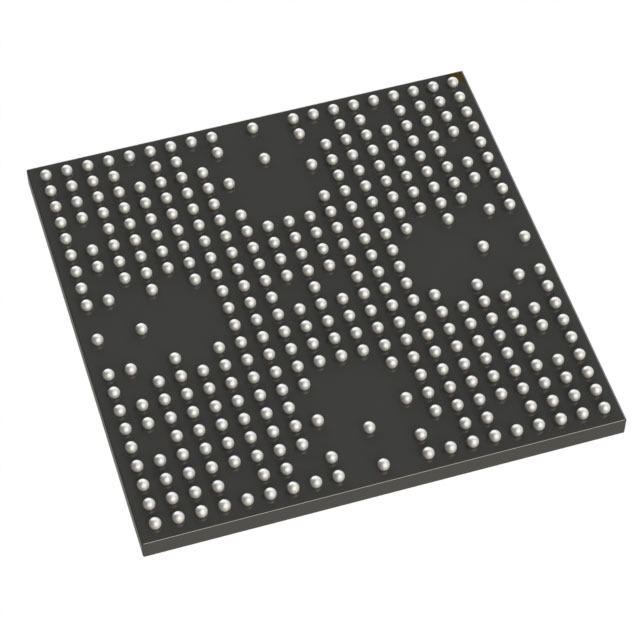

| Package / Case | 343-TFBGA |
| Supplier Device Package | 343-TFBGA (14×14) |
| Additional Interfaces | CANbus, I2C, MMC/SD/SDIO, QSPI, UART |
