Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Microchip Technology |
| Series | – |
| Packaging | Tube |
| Part Status | Active |
| Number of Bits | 8 |
| Number of D/A Converters | 2 |
| Settling Time | 4.5µs (Typ) |
| Output Type | Voltage – Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | Internal |
| Voltage – Supply, Analog | 2.7V ~ 5.5V |
| Voltage – Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.25, ±0.2 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 125°C |

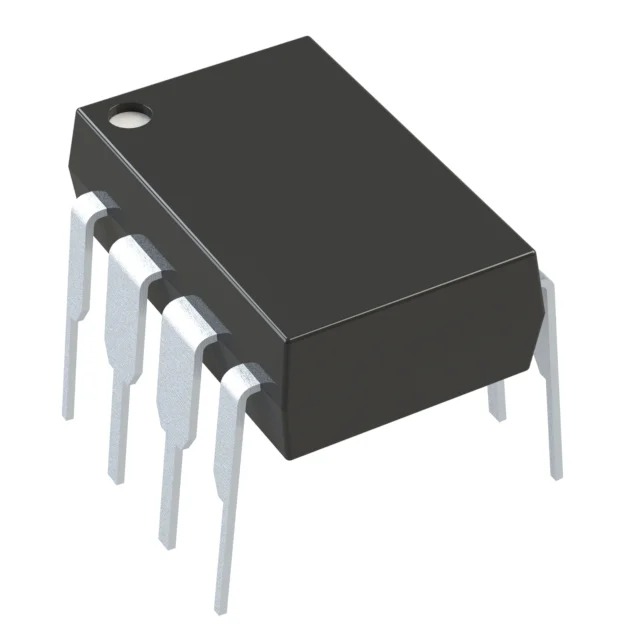

| Package / Case | 8-DIP (0.300″, 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Mounting Type | Through Hole |
| Base Product Number | MCP4802 |
