Açıklama

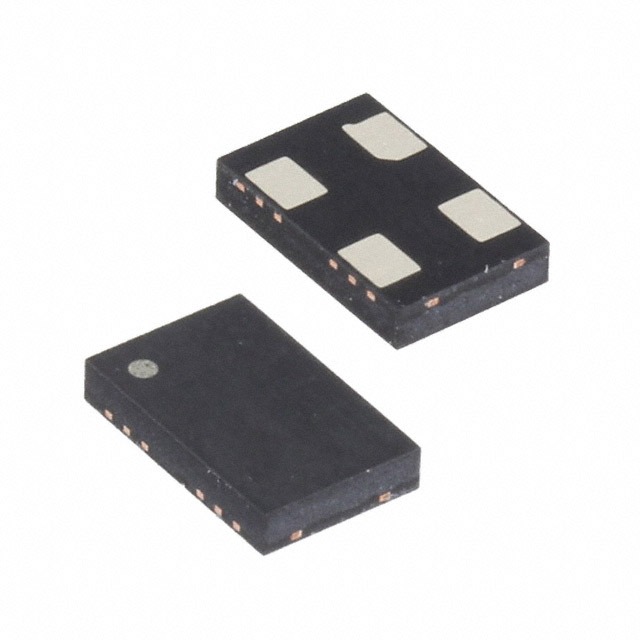

| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Microchip Technology |
| Series | DSC8001 |
| Packaging | Tube |
| Part Status | Active |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Programmable Type | Blank (User Must Program) |
| Available Frequency Range | 1 MHz ~ 150 MHz |
| Function | Standby |
| Output | CMOS |
| Voltage – Supply | 1.8V ~ 3.3V |
| Frequency Stability | – |
| Frequency Stability (Total) | ±10ppm |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 12.2mA |
| Ratings | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD (5×3.2) |
| Size / Dimension | 0.197″ L x 0.126″ W (5.00mm x 3.20mm) |
| Height – Seated (Max) | 0.035″ (0.90mm) |
| Current – Supply (Disable) (Max) | 15 µA |
| Base Product Number | DSC8001 |
