Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | Microchip Technology |
| Series | SAM E54 |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 99 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 256K x 8 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 3.63V |
| Data Converters | A/D 32x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 128-TQFP (14×14) |

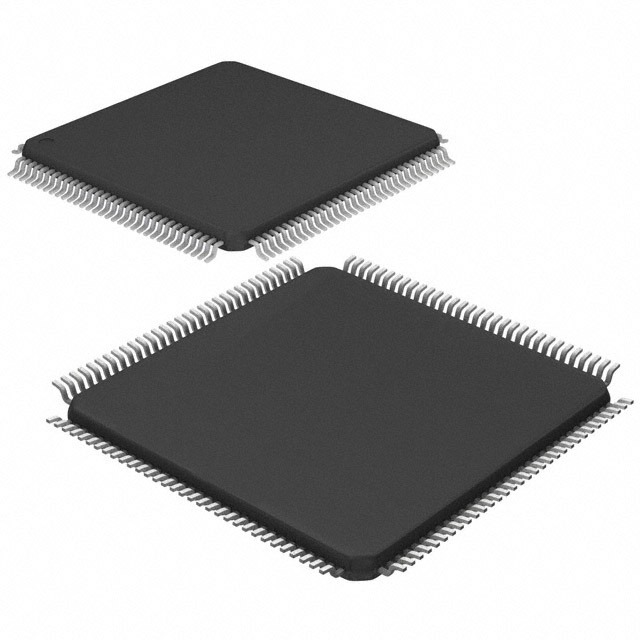

| Package / Case | 128-TQFP |
| Base Product Number | ATSAME54 |
