Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

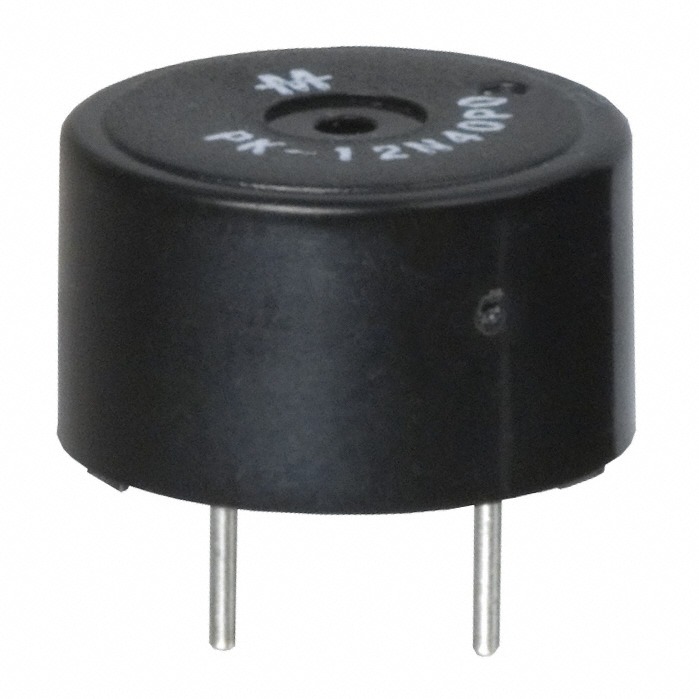

| Manufacturer | Mallory Sonalert Products Inc. |
| Series | PK |
| Packaging | Bulk |
| Part Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage – Rated | 12 V |
| Voltage Range | 3 ~ 15V |
| Frequency | 4.1kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | – |
| Sound Pressure Level (SPL) | 83dB @ 12V, 10cm |
| Current – Supply | 5mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 90°C |
| Approval Agency | – |
| Ratings | – |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.551″ Dia (14.00mm) |
| Height – Seated (Max) | 0.323″ (8.20mm) |
