Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

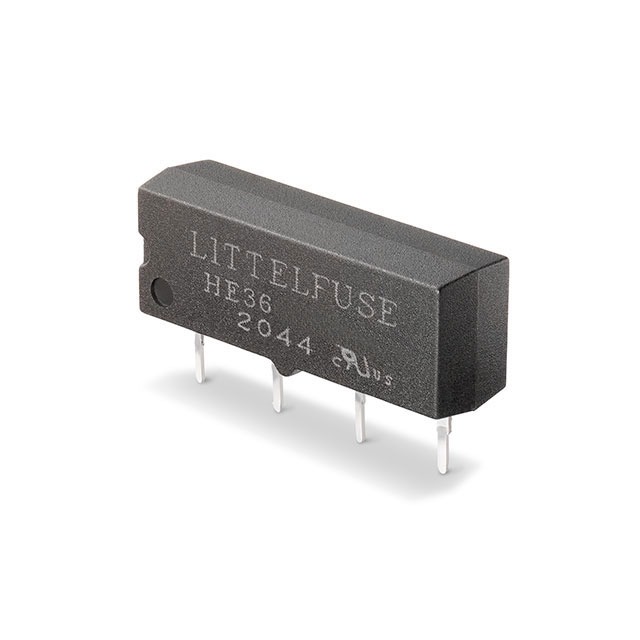

| Manufacturer | Littelfuse Inc. |
| Series | HE3600 |
| Packaging | Tube |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 500 mA |
| Switching Voltage | 200VDC – Max |
| Coil Current | 11.1 mA |
| Coil Type | Non Latching |
| Features | Diode |
| Termination Style | PC Pin |
| Seal Rating | – |
| Must Operate Voltage | 16 VDC |
| Must Release Voltage | 2 VDC |
| Operate Time | 1 ms |
| Release Time | 1 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | – |
| Coil Resistance | 2.15 kOhms |
