Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

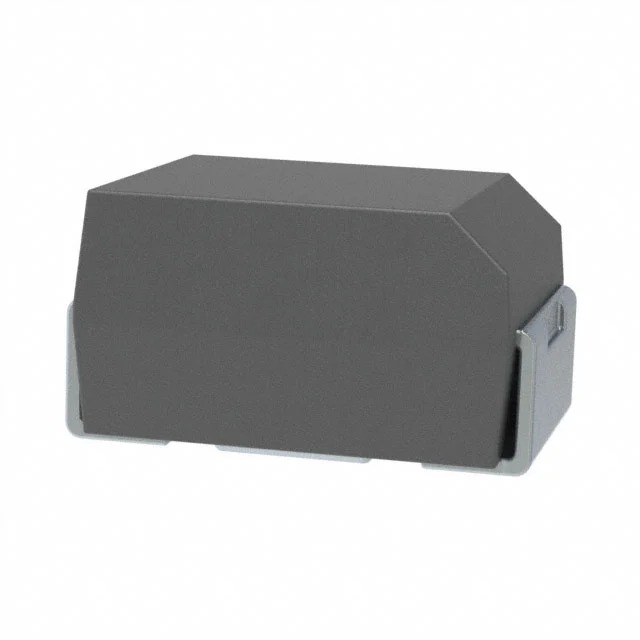

| Manufacturer | KEMET |
| Series | KO-CAP® T520 |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage – Rated | 6.3 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 70mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 1411 (3528 Metric) |
| Size / Dimension | 0.138″ L x 0.110″ W (3.50mm x 2.80mm) |
| Height – Seated (Max) | 0.079″ (2.00mm) |
| Lead Spacing | – |
| Manufacturer Size Code | B |
| Ratings | – |
| Features | General Purpose |
| Base Product Number | T520B |
