Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Johanson Technology Inc. |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Type | Diplexer |
| Frequency Bands (Low / High) | 2.4GHz ~ 2.5GHz / 5.17GHz ~ 7.125GHz |
| Low Band Attenuation (min / max dB) | 2.00dB / – |
| High Band Attenuation (min / max dB) | 10.00dB / – |
| Return Loss (Low Band / High Band) | 12.0dB / 10.0dB |
| Mounting Type | Surface Mount |

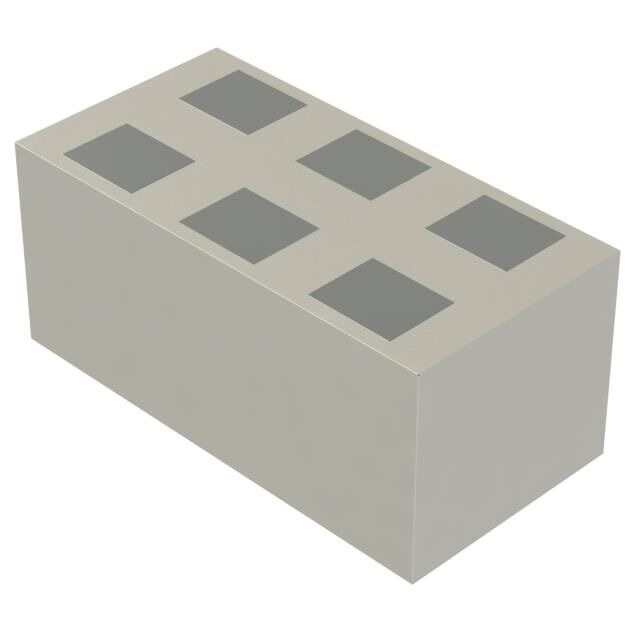

| Package / Case | 0603 (1608 Metric), 6 PC Pad |
