Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | EPSON |
| Series | SG-8101 |
| Packaging | Tube |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Available Frequency Range | 670 kHz ~ 170 MHz |
| Function | Standby |
| Output | CMOS |
| Voltage – Supply | 1.62V ~ 3.63V |
| Frequency Stability | – |
| Frequency Stability (Total) | ±15ppm |
| Operating Temperature | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | – |
| Current – Supply (Max) | 8.1mA |
| Ratings | – |
| Mounting Type | Surface Mount |

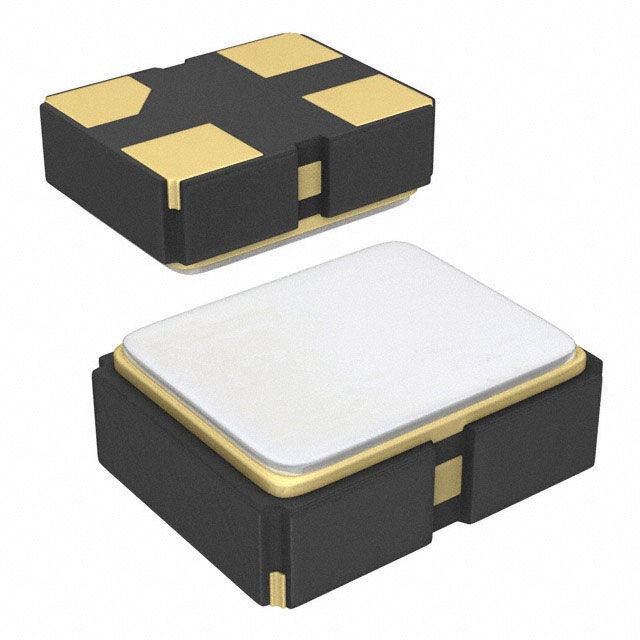

| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD (5×3.2) |
| Size / Dimension | 0.197″ L x 0.126″ W (5.00mm x 3.20mm) |
| Height – Seated (Max) | 0.051″ (1.30mm) |
| Current – Supply (Disable) (Max) | 2.5 µA |
