Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Mfr | ECS Inc. |
| Series | ECX-306 |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Not For New Designs |

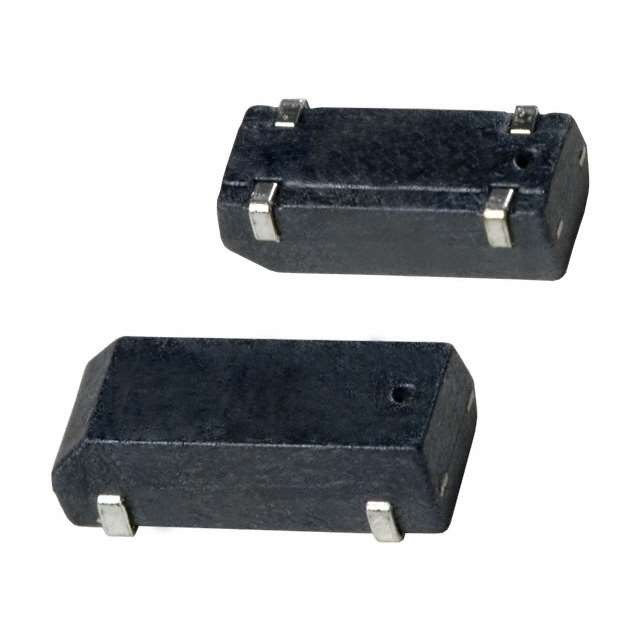

| Type | kHz Crystal (Tuning Fork) |
| Frequency | 32.768 kHz |
| Frequency Stability | – |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 6pF |
| ESR (Equivalent Series Resistance) | 50 kOhms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | – |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOJ, 5.50mm pitch |
| Size / Dimension | 0.315″ L x 0.150″ W (8.00mm x 3.80mm) |
| Height – Seated (Max) | 0.098″ (2.50mm) |
