Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Diodes Incorporated |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Voltage – Supply, Single (V+) | 2.7V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 100µs, 50ns |
| -3db Bandwidth | 1GHz |
| Charge Injection | – |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current – Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -35dB @ 240MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |

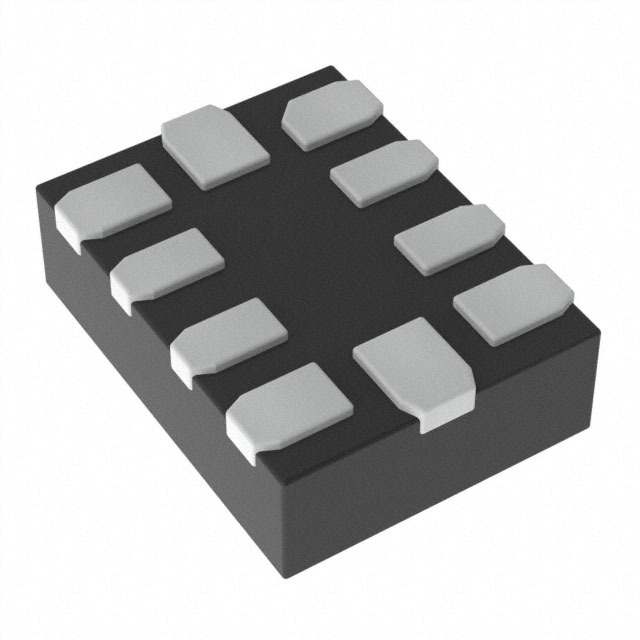

| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UQFN (1.5×2) |
