Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | Diodes Incorporated |
| Series | – |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Applications | USB |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Switch Circuit | SPDT |
| Number of Channels | 2 |
| On-State Resistance (Max) | – |
| Voltage – Supply, Single (V+) | 3.3V |
| Voltage – Supply, Dual (V±) | – |
| -3db Bandwidth | 13GHz |
| Features | Bi-Directional, USB 3.0, USB 3.1 |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

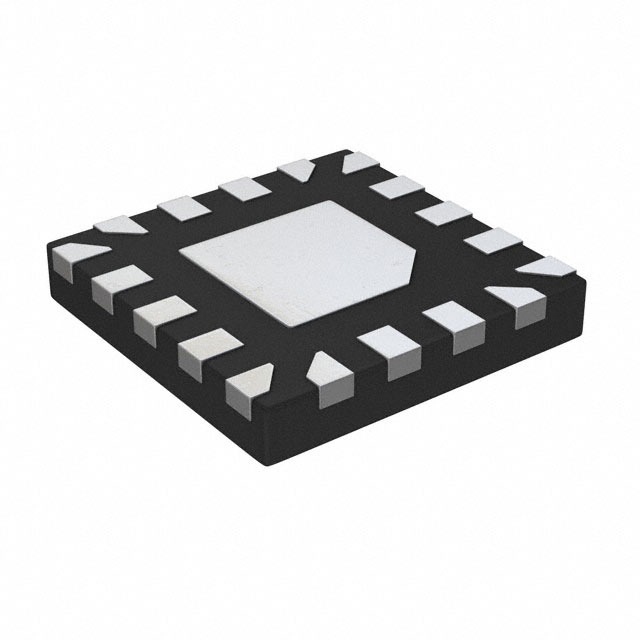

| Package / Case | 18-XFQFN Exposed Pad |
| Supplier Device Package | 18-X2QFN (2×2) |
| Base Product Number | PI3DBS16212 |
