Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

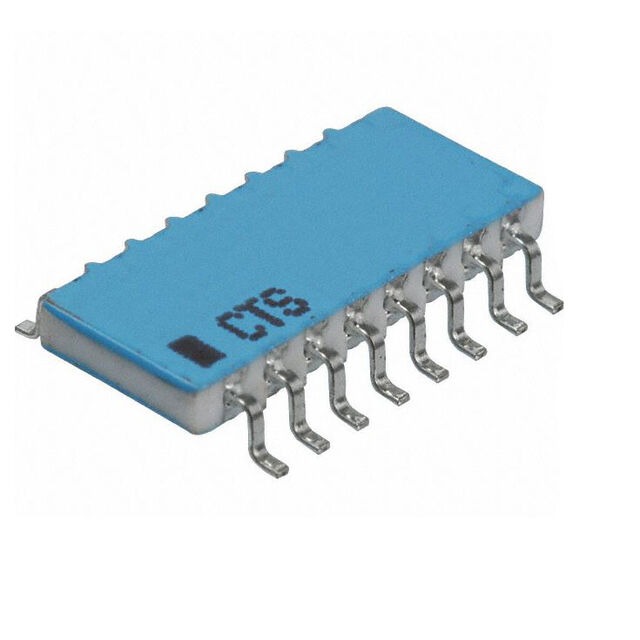

| Manufacturer | CTS Resistor Products |
| Series | 767 |
| Packaging | Tube |
| Part Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 10k |
| Tolerance | ±2% |
| Number of Resistors | 8 |
| Resistor Matching Ratio | – |
| Resistor-Ratio-Drift | – |
| Number of Pins | 16 |
| Power Per Element | 200mW |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | – |
| Qualification | – |
| Applications | – |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.220″, 5.59mm Width) |
| Supplier Device Package | – |
| Size / Dimension | 0.440″ L x 0.220″ W (11.18mm x 5.59mm) |
| Height – Seated (Max) | 0.093″ (2.36mm) |
