Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|
| Manufacturer | CTS Resistor Products |
| Series | 766 |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Circuit Type | Dual Terminator |
| Resistance (Ohms) | 330, 470 |
| Tolerance | ±2% |
| Number of Resistors | 28 |
| Resistor Matching Ratio | – |
| Resistor-Ratio-Drift | – |
| Number of Pins | 16 |
| Power Per Element | 80mW |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | – |
| Qualification | – |
| Applications | – |
| Mounting Type | Surface Mount |

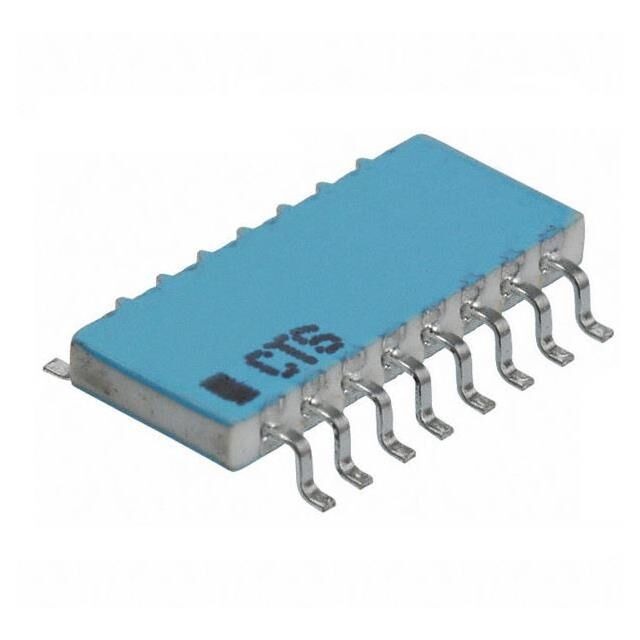

| Package / Case | 16-SOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | – |
| Size / Dimension | 0.390″ L x 0.154″ W (9.90mm x 3.90mm) |
| Height – Seated (Max) | 0.069″ (1.75mm) |
