Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

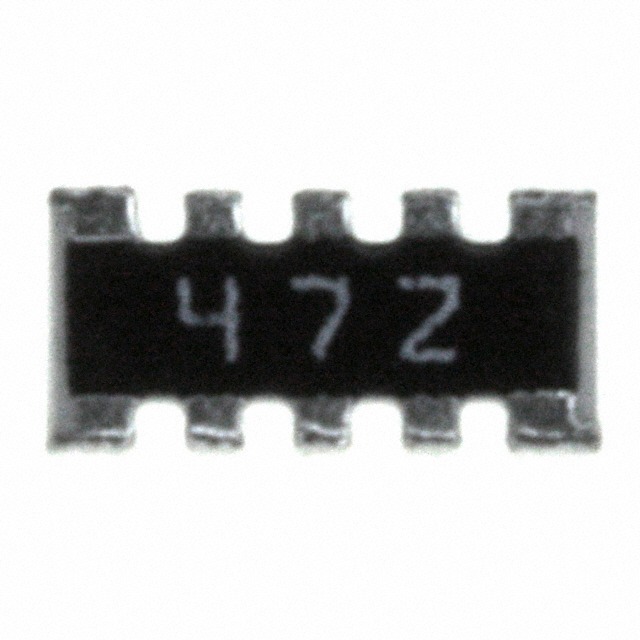

| Manufacturer | CTS Resistor Products |
| Series | 746 |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Circuit Type | Bussed |
| Resistance (Ohms) | 4.7k |
| Tolerance | ±5% |
| Number of Resistors | 8 |
| Resistor Matching Ratio | – |
| Resistor-Ratio-Drift | – |
| Number of Pins | 10 |
| Power Per Element | 63mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | – |
| Qualification | – |
| Applications | DDR SDRAM, DRAM, MDDR |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Convex, Long Side Terminals |
| Supplier Device Package | – |
| Size / Dimension | 0.126″ L x 0.063″ W (3.20mm x 1.60mm) |
| Height – Seated (Max) | 0.028″ (0.70mm) |
| Base Product Number | 746X101 |
