Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

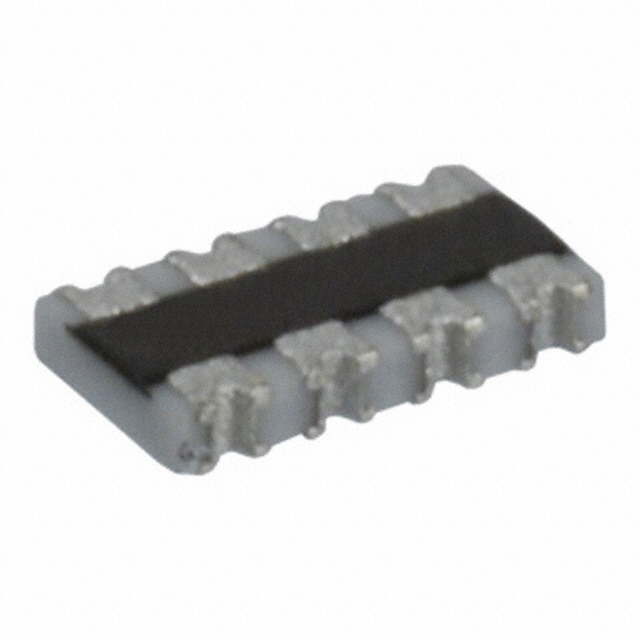

| Manufacturer | CTS Resistor Products |
| Series | 741 |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Part Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 39 |
| Tolerance | ±5% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | – |
| Resistor-Ratio-Drift | – |
| Number of Pins | 8 |
| Power Per Element | 63mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Applications | DDR SDRAM, DRAM, MDDR |
| Mounting Type | Surface Mount |
| Package / Case | 0804, Concave, Long Side Terminals |
| Supplier Device Package | – |
| Size / Dimension | 0.079″ L x 0.039″ W (2.00mm x 1.00mm) |
| Height – Seated (Max) | 0.020″ (0.50mm) |
| Base Product Number | 741C083 |
