Açıklama
| ÖZELLİK | AÇIKLAMA |
|---|---|

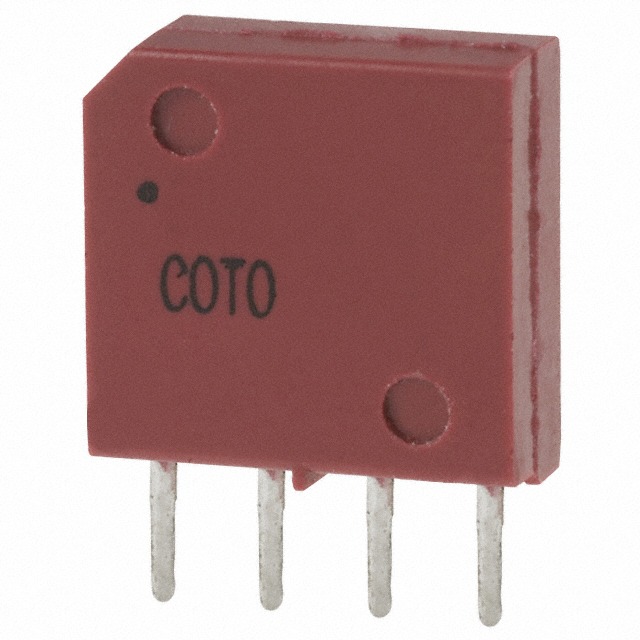

| Manufacturer | Coto Technology |
| Series | 9012 |
| Packaging | Tube |
| Part Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 500 mA |
| Switching Voltage | 200VAC, 200VDC – Max |
| Coil Current | 16 mA |
| Coil Type | Non Latching |
| Features | Diode, EMI Shielded |
| Termination Style | PC Pin |
| Seal Rating | – |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 0.35 ms |
| Release Time | 0.1 ms |
| Operating Temperature | -20°C ~ 85°C |
| Contact Material | – |
| Coil Resistance | 750 Ohms |
| Base Product Number | 9012 |
